EBS 260 – Hand Jet Printer

$5,600.00$5,805.00

HandJet EBS-260 provides reimagined features and functionality for even more innovative, portable coding.

Clear

Description

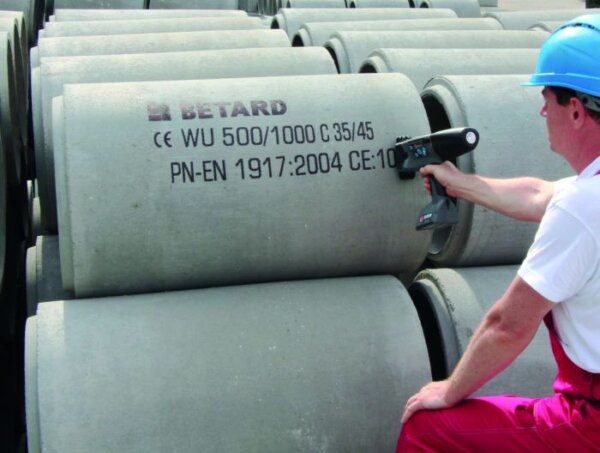

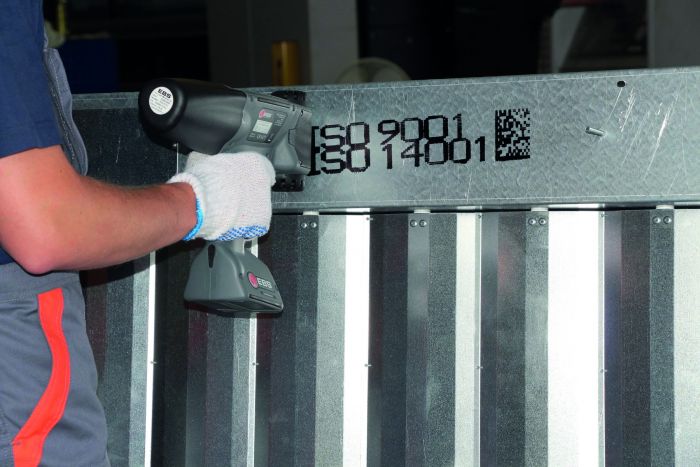

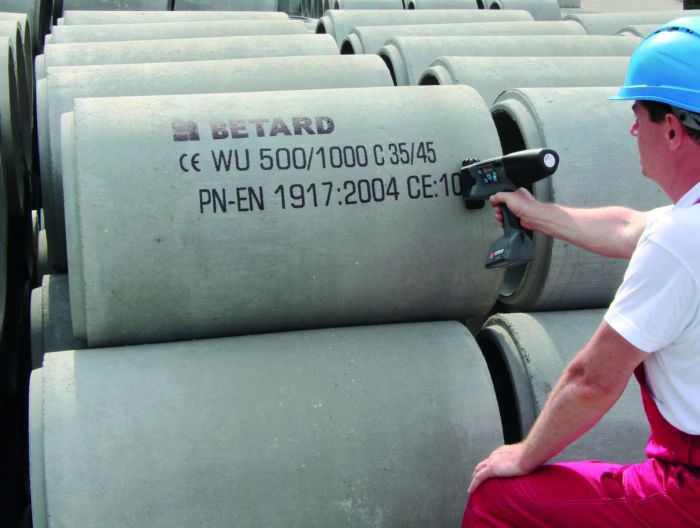

The EBS-260’s print height has been doubled to 32 dots with print heights up to 2.2″ and will provide one to four separate lines of code.  We’ve increased the capacity of the ink cartridge to up to 200,000 characters in a 7×5 matrix.  Single- or multi-line messages from .276″ to 2.2″ high can be printed on both porous and non-porous substrates. It’s ideal for imprinting corrugated, paper, film, foil, glass, metal, lumber, concrete, and many other surfaces.

New on-board, color touch-screen controller simplifies on-the-fly adjustments. The over 3.5″-diagonal, hardened screen enables the user to view the message being printed and various operational parameters. The large, highly-readable screen makes it easy to adjust print parameters at the touch of a finger, ensuring optimum printing results without interrupting work flow.

Additional information

Kit

No extras, MEK KIT (w/ink, cleaning cartridge, and cleaning solution), ACETONE KIT (w/ink and cleaning cartridge)

Specifications

Touch-Screen: Color display, hardened glass; 3.54″ (9cm diagonal)
Nozzles: 32
Nozzle diameter: 150 μm, optional 200 μm und 120 μm
Print image height: .276″ – 2.2″ (7 – 56 mm)
Minimum size of printed object: 1.57″ (40 mm)
Working position: Any angle
Printer memory: 2 Gigabyte
Printing: Enables printing of multiple texts in successive lines Memory blocks for projects:> 50,000 projects with up to 10,000 characters each
Graphics: Black & white PNG data can be imported (up to 32 dots in height)
TrueType Fonts installable: Yes
Special characters: National (diacritical) characters and graphics
Variable fields: Date, time in any format; expiration date; ascending/descending sequential numbers; universal counter
Timing: Synchronized with rotational speed of the lower stabilizer or at intervals by an internal generator
Programming: Via the built-in touch-screen, on the website of the specific unit using the Firefox browser, or via offline editor (included)
Special Function: Laser guidance for message positioning; automatic measuring of print area on objects
Optional special functions: Master-Slave Bluetooth connection with input devices such as: scanner, Database functions, php-script administration
Power supply: External power supply; 24V, 1.25A
Operating time: Up to 16 hours operation with fully-charged battery at 68°F (20°C); automatic low-battery indicator
Recharging: Uses an external 24V, 1.25A DC power pack
Ink: Cartridges; ethanol-, acetone- or MEK-based in various colors (to be specified when ordering)
Cartridge capacity: 6.7 ounces (200 ml); prints approx. 200,000, 7×5 dot-matrix characters
Internal working pressure: 4.4 to 5.8 psi (0.3 to 0.4 bar) Operating temp: 41 °F to 104°F (5°C to 40°C)
Storage temp: 32°F to 113°F (0°C to 45°C)-water-based ink;
14°F to 113°F (-1 o·c to 45°C) – solvent based ink
Humidity: Up to 90% non-condensing
Weight: 3.64 lbs (1.65 kg) with ink cartridge
